Bigshot Productions: Enlouva IV Cranes
Enlouva IV crane is made from lightweight aluminum and is easy to assemble and operate. Use with the Enlouva base or Mammoth base and the crane can achieve a maximum lens height of 23'8" and a minimum lens height of -15', for a total lift range of 38'8".
The Enlouva IV crane features a redesigned, light-weight fulcrum for faster set-up time. The counterweight bucket has been redesigned to accept more counter-balance weights, allowing the crane to carry a heavier camera package. The Enlouva IV crane can also be mounted on a Classic or Premier Plus camera car to achieve great moving shots and is supplied with 48 rubber-coated 25 lb. lead weights.
- Maximum lens height: 23' 8"
- Minimum lens height: -15'
- Lift range: 38' 8"
- Maximum arm reach with maximum load of 148 lbs: 21' 6"
- Minimum arm reach with maximum load of 450 lbs: 6' 6"
- Doorway clearance with Enlouva or Mammoth 48" base: 6' 9"
- Arm reach configurations: 6' 6", 9' 6", 12' 6", 15' 6", 18' 6", 21' 6"

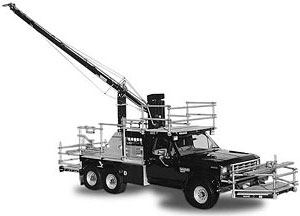

Enlouva IV Crane mounted on the Premier Plus camera car
- Maximum height with arm forward 27' 1"
- Minimum height with arm forward 4' 3"
- Maximum height with arm to the rear 21' 3"
- Minimum height with arm to the rear 0' 0"
- Maximum height with arm to the side 27' 1"
- Minimum height with arm to the side 0' 0"
- Maximum arm reach from fulcrum 23'0"
- Maximum weight on arm, fully extended 148 lbs
